Pull-type sprayer Whirlwind M612

Pull-type sprayers

A

The ultimate “heavy-duty” pull-type sprayers, ideal for large areas and all agricultural crops where a machine with great performance and long-term reliability is required.

Tractor power from

48 kW – 65 HP

Tank capacity

600 – 1000 – 1500 – 2000 – 3000 lt.

Fan efficiency

up to 20,000 m3/h

CROPS
  • vineyards
  • orchards
  • walnuts
  • horticultural crops
  • strawberries
  • banana groves
  • olive groves
  • tree nurseries
TECHNICAL FEATURES
Centrifugal pump flow rate 180 to 500 l/m
Operating pressure 1.5 bar
Metering valves flow rate From 0 to 550/1300 l/h
Pneumatic nozzle D.4MM.
Agitation Hydraulic
LT. 600 LT. 1000 SH LT. 1000 C LT. 1500 LT. 2000 LT. 3000
Length cm 294 cm 352 cm 352 cm 380 cm 410 cm 520
Width cm 114/124 cm 132/142 cm 138-148 cm 135/145 cm 165/175 cm 197/207
Standard height cm 137/147 cm 150/160 cm 132/142 cm 170/180 cm 185 cm 200
Weight (empty) kg 820 kg 895 kg 805 kg 1160 kg 1250 kg 1520

Values, dimensions and weights are for reference only and may vary according to machine configuration

BROCHURE
PHOTOS
AVAILABLE CONFIGURATIONS
trainato whirlwind fisso 180

Fixed 180°

Single-fan 180° outlet ideal for treating crops with pergola trellis farming system.

trainato whirlwind 90+90

90°+90°

Outlet with two adjustable fans. The aerodynamic design and careful execution of these elements allow each air jet to be directed toward the target to be treated, without loss of flow rate and in the most rational way according to the type and shape of the trees.
Ideal for treating all types of row crops or pergola trellis farming system

trainato whirlwind 90+cannone

90°+ Cannon

Diffuser with a fishtail head combined with a cannon head. Ideal for treating low open-field crops (horticultural crops, strawberries, etc.) or centuries-old olive groveslarge fruit trees grown in a scattered order, etc.

trainato whirlwind multiflow vigneto

Multiflow vineyard

Turret outlet with multiple adjustable heads ideal for low row crops with reduced row spacing such as vineyards, berries, horticultural crops, etc.

trainato whirlwind twin multiflow

Twin-Multiflow

DOUBLE turret outlet with multiple heads that can be oriented on the horizontal and vertical axis, ideal for vineyards with row spacings greater than even 3.00 m, intensive orchards, intensive olive groves, berries, horticultural crops

trainato whirlwind multiflow frutteto

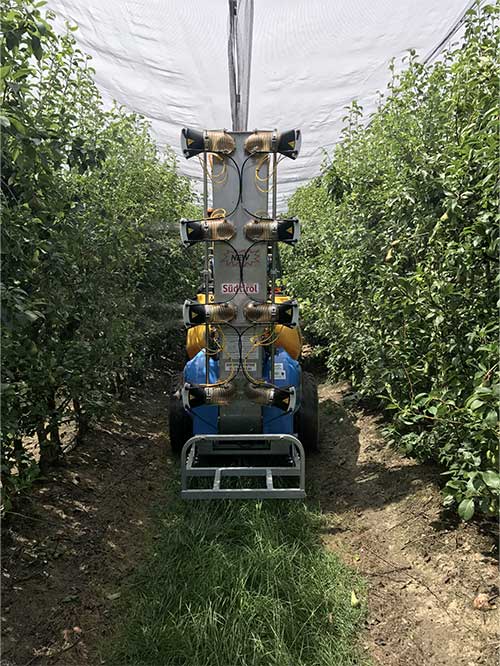

Multiflow orchard

Turret outlet with multiple adjustable heads, ideal for intensive orchards (especially apple, pear trees).

trainato whirlwind gib dor

Gib-Dor

Multiple-head outlet that allows targeted applications of Gibberellic Acid (GA) to the bunch band in table grape crops.

trainato whirlwind cannone vivaio

Cannon nursery

Adjustable cannon diffuser with dual side nozzles to be able to operate on protected crops (greenhouses, tunnels) or open field, tree nurseries, tropical crops (banana groves, pineapples) etc.
Spray ranges, depending on the type of driveline, available tractor power and environmental conditions, can be up to 30 m horizontal.

trainato whirlwind albatros

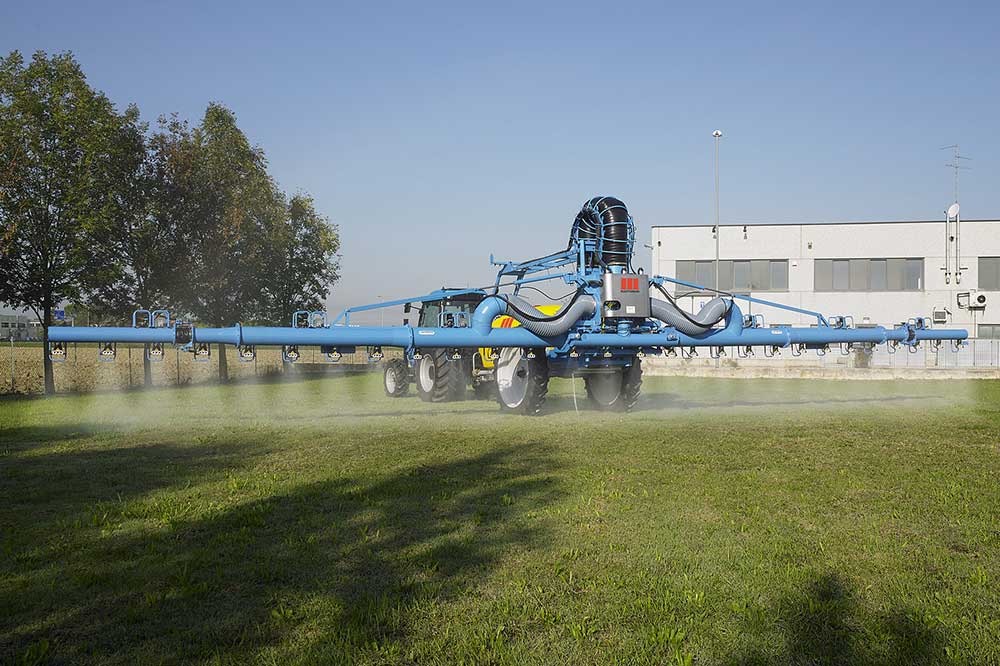

Albatros

Pneumatic-electrostatic boom outlet with working widths up to 12 m (on mounted models) or up to 18 m (on pull-type models) for operating on open-field or greenhouse crops (horticultural crops, tree nurseries, strawberries, etc.).

trainato whirlwind turbo2

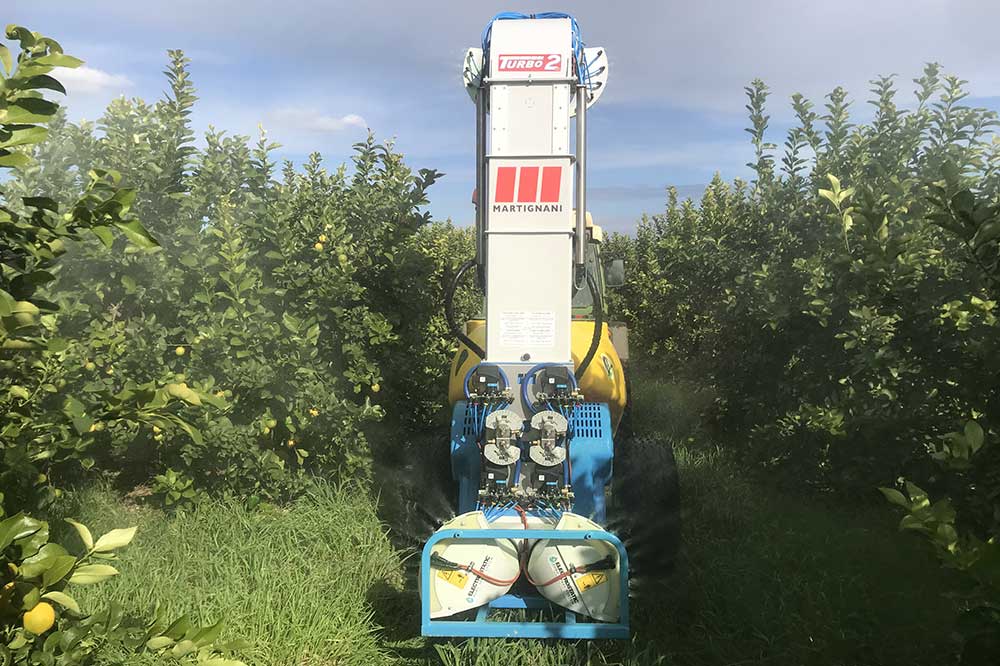

Turbo 2

Diffuser with double (upper & lower) adjustable fishtail head and fixed elevation (extensions of different lengths are available) or hydraulic telescopic ideal for all orchards, citrus groves, walnut groves, hazelnut groves, almond groves, olive groves, “Y” or “T”/”GDC” trained vineyards etc…

trainato whirlwind noci

Walnuts

Diffuser with double lower 90° head and double upper head with cannons or fans (chosen according to the heights to be treated and the required treatment angle), ideal for treating large fruit trees (avocado, walnuts, macadamia, pecan, rubber etc.), oil palm plantations, poplar groves, etc.


Palm oil

Diffuser with double upper 90° head and double lower head with cannons or fans (chosen according to the heights to be treated and the required treatment angle), ideal for treating large oil palm plantations (heights up to over 14 meters and row spacing of approximately 9 meters).

trainato whirlwind cognac

Cognac

Double-headed outlet to operate on 2 complete rows of row crops (especially vineyards), the parallelogram trellis system allows it to operate with maximum effectiveness even on slopes.

trainato whirlwind duo wing jet

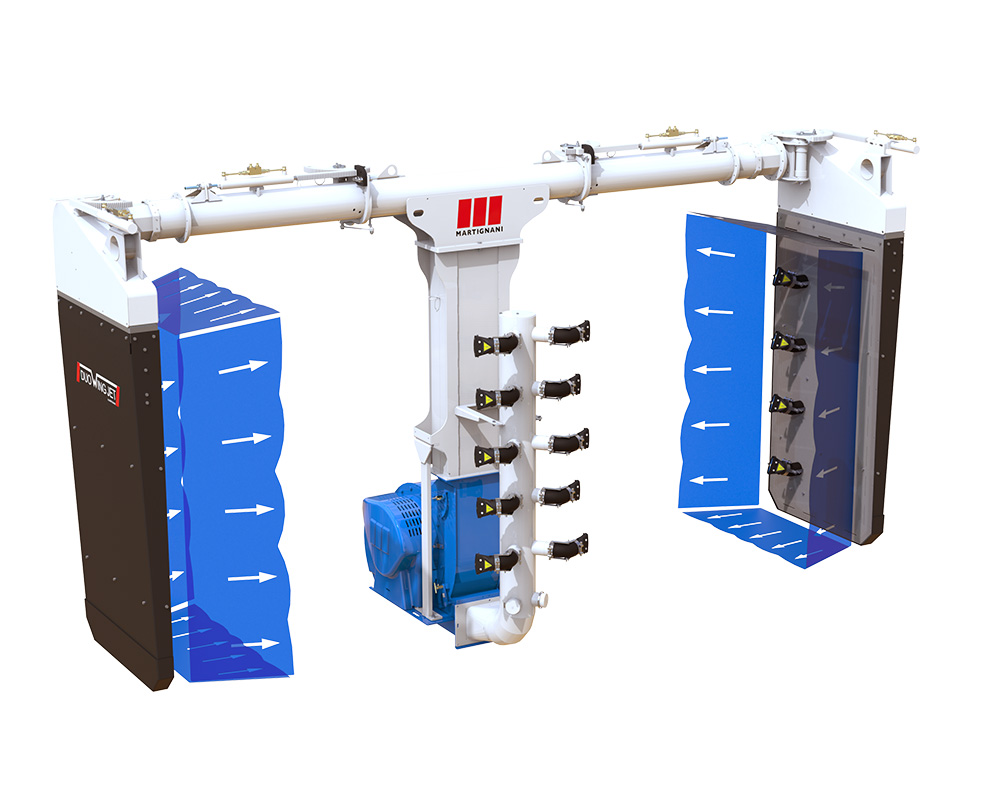

Duo Wing Jet

Spraying outlet to treat 2 complete vineyard rows. The first and only sprayer that performs the product recovery by combining the action of the electrostatic attraction between vegetation and sprayed micro-drops, with that of two special perimeter-expanding air-cushion protective shields, without any recycling of pesticide mixture, with anti-drift effect in full compliance with the buffer zones. Awarded for Technical Innovation at the EIMA Fair (Bologna-Italy) 2014 and Enovitis (Treviso-Italy) 2014.

trainato whirlwind turbo3

Turbo 3

To operate on 3 complete rows of vineyard at the same time, the first multi-row sprayer designed and introduced on the world market; already awarded as a Technical Innovation in numerous international agricultural fairs, including EIMA (Bologna-Italy) in 1988 and Fieragricola (Verona-Italy) in 2004.
