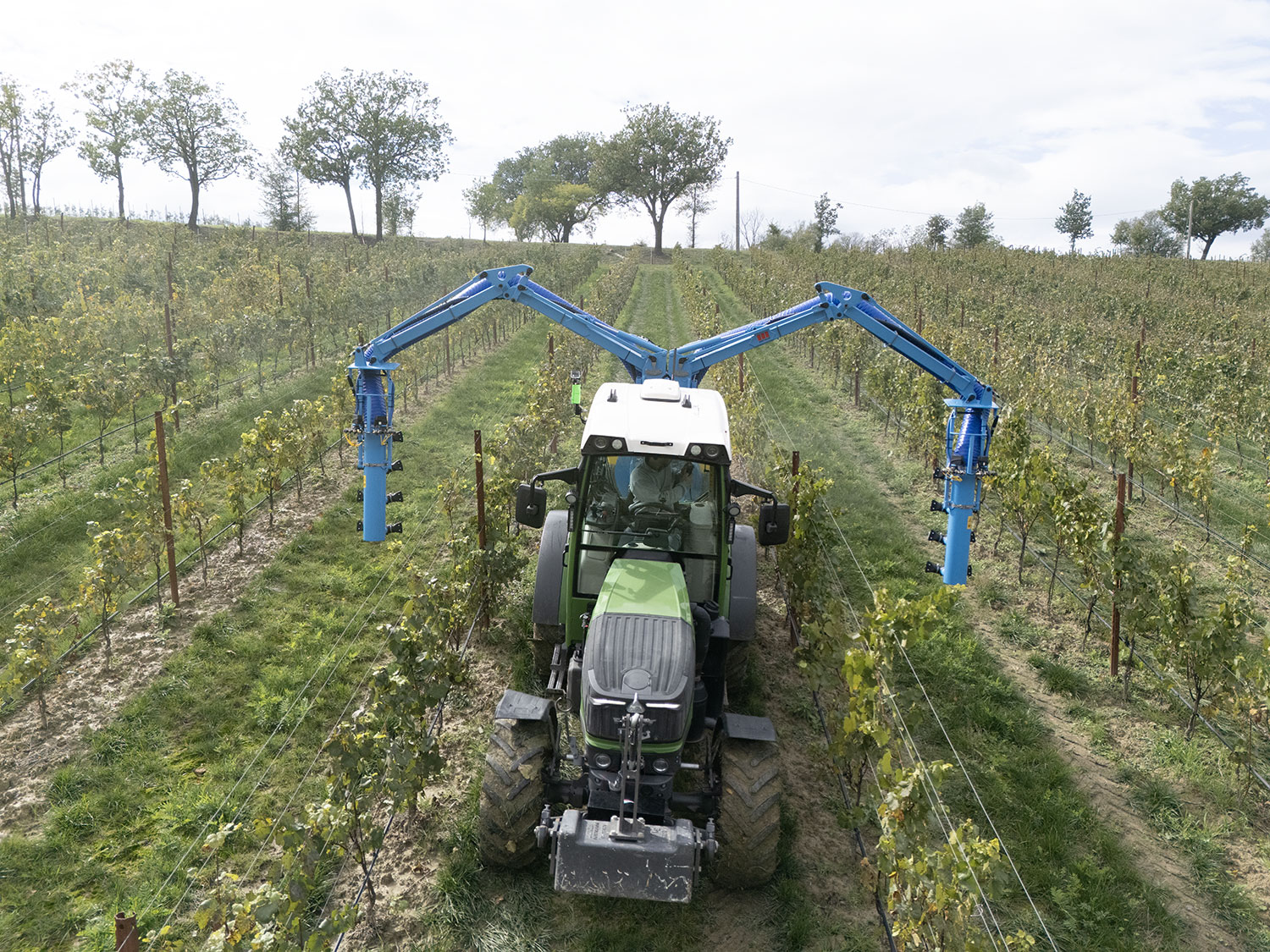

Articulated sprayer Phantom M511 NewPortTrio
Martignani’s new 3ROW electrostatic sprayer with numerous innovations, including the patented kinematic boom that allows it to operate indifferently on variable row crops from 1.60 to 3.10 MT.
Tractor power from
62 kW – 85 HP
Tank capacity
600 – 1000 – 1500 lt
Fan efficiency
up to 13.500 m3/h
CROPS
- vineyards
- berries
PLUS
INNOVATIVE MULTI-ROW BOOM with PATENTED KINEMATICS:
- WIDE range of inter-rows (from 1.60 to 3.10 MT)
- GREAT maneuverability

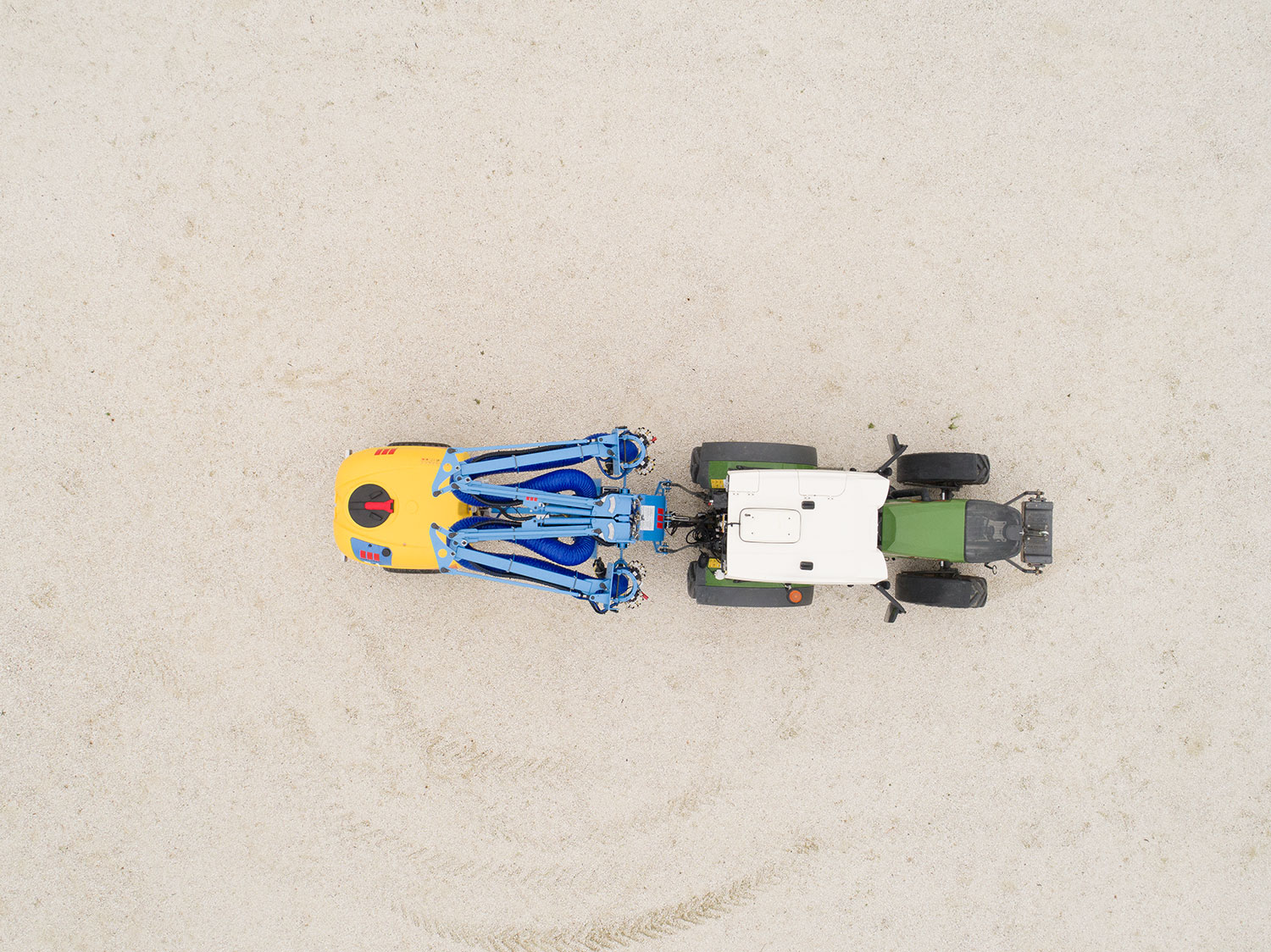

- MINIMUM space requirement (1.60 MT in width and 2.50 MT in height) for storage, transport and road transfers
- RELIABILITY over time
NEW DESIGN CENTRIFUGAL FAN with FRONT and HIGH suction:
- REDUCED rotation speed
- REDUCED power consumption
- REDUCED acoustic impact
- AVOIDS recycling of mist and dust
FLEXIBLE AIR DUCT in PVC-coated polyester that offers excellent resistance to chemical and atmospheric agents as well as high mechanical resistance
TECHNICAL FEATURES
| Centrifugal pump flow rate | 180 l/min |
|---|---|
| Operating pressure | 1,5 bar |
| Metering valves flow rate | From 0 to 550/1300 l/h |
| Pneumatic nozzle | D.4 mm |
| Agitation | hydraulic |
| LT. 600 | LT. 1000 | LT. 1500 | |
|---|---|---|---|
| Length | cm 375 | cm 368 | cm 387 |
| Width in transport position | cm 160 | cm 160 | cm 160 |
| Height in transport position | cm 250 | cm 250 | cm 250 |
| Weight (empty) | kg 1150 | kg 1260 | kg 1300 |
